WAH Series Click for more details

WAH Series Hypoid Gear reducer

Categories： Hypoid Gear Reducer     WAH Series

Type Worm Gear Speed Reducer / Gearbox / Reductor
Color Blue(RAL5010) / Silver Gray(K9149) or Customized Color
Packing Carton, Honey Comb Carton, Wooden Case with Wooden Pallet
Usage Industrial Machine, Food Stuff, Ceramics, Chemical, Packing, Dyeing, Wood Working, Glass, etc.
Flange IEC standard flange or customized dimensions

Features
1.Hypoid gear transmission.
2.Aluminum housing.
3.Common mounting dimensions.
4.Wide range of accessories.

Benefits
1.Higher performance and reliability.
2.Long service life.
3.Low temperature rise.
4.Unique housing design.

Technical features:

Housing Material	Aluminum
Gearing Arrangement	hypoid gear
Size	4 sizes(WAH50~WAH90)
Power	0.12~4 KW
Nominal torque	≤350 N.m
Ratio	7.5~300

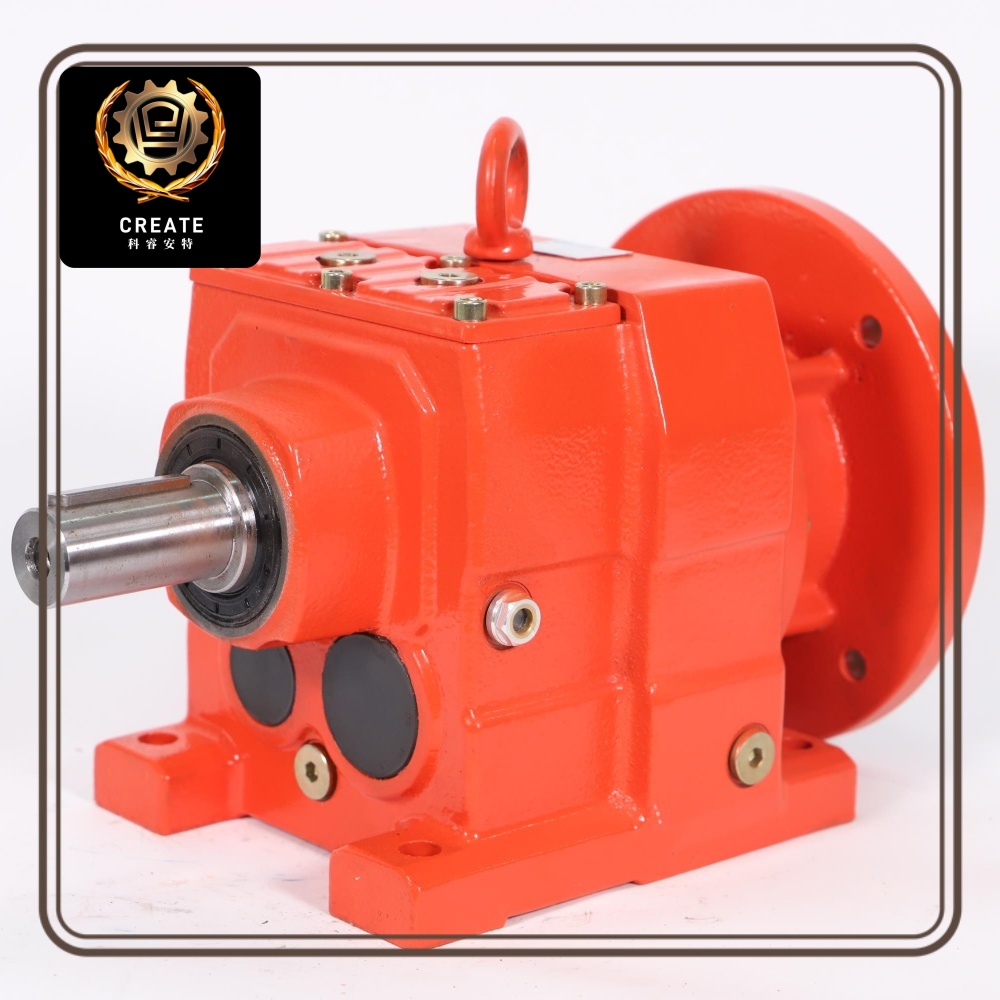

WR Helical Gearbox Click for more details

WR Helical Gearbox

Categories: Helical Gear Reducer
Model: WR Series

Type WR series Inline helical gear reducer / gearbox
Model WR17/27/37/47/57/67/77/87/97/107/137/147/167
Mounting type Flange, hollow shaft, solid shaft
Efficiency 94%-98%
Housing Material HT250 cast iron

Technical features:

Size	WR17-WR167
Ratio	3.41-289.74
Power	0.12-160KW

Strict production process
High precision level: grade 6
Semi-automatic assembly line
100% running test
Noisy level control
Vibration test

MITSUBUSHI Hobbing machine
LG-MAZAK vertical machining center
DMG Mori vertical/horizontal machining center.

Features of inline helical gearbox
1.Strong cast iron housing.
2.Wide range of sizes.
3.High carrying ability.
4.High efficiency.
5.Univeral mounting.
Benefits of inline helical gearbox
1.Unique housing design.
2.Long service life.
3.Low temperature rise.
4.Unique housing design.

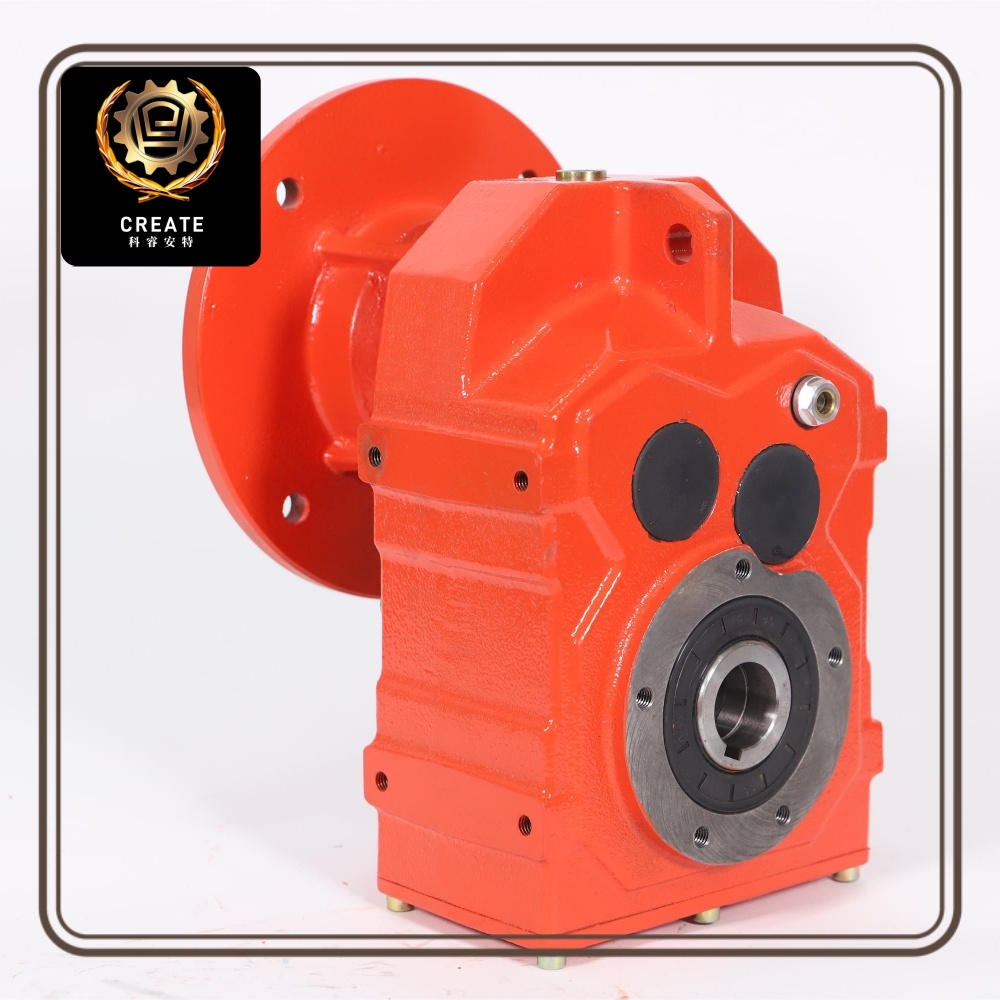

WF Series Gearbox Click for more details

WF parallel shaft helical gear reducer

Features
1.Strong cast iron housing.
2.Wide range of sizes.
3.High carrying ability.
4.High efficiency.
5.Univeral mounting.
Benefits
1.Unique housing design.
2.Long service life.
3.Low temperature rise.
4.Unique housing design.

Technical features:

Size	WF 37-WF 157
Ratio	3.77-281.71
Power	0.12-200KW

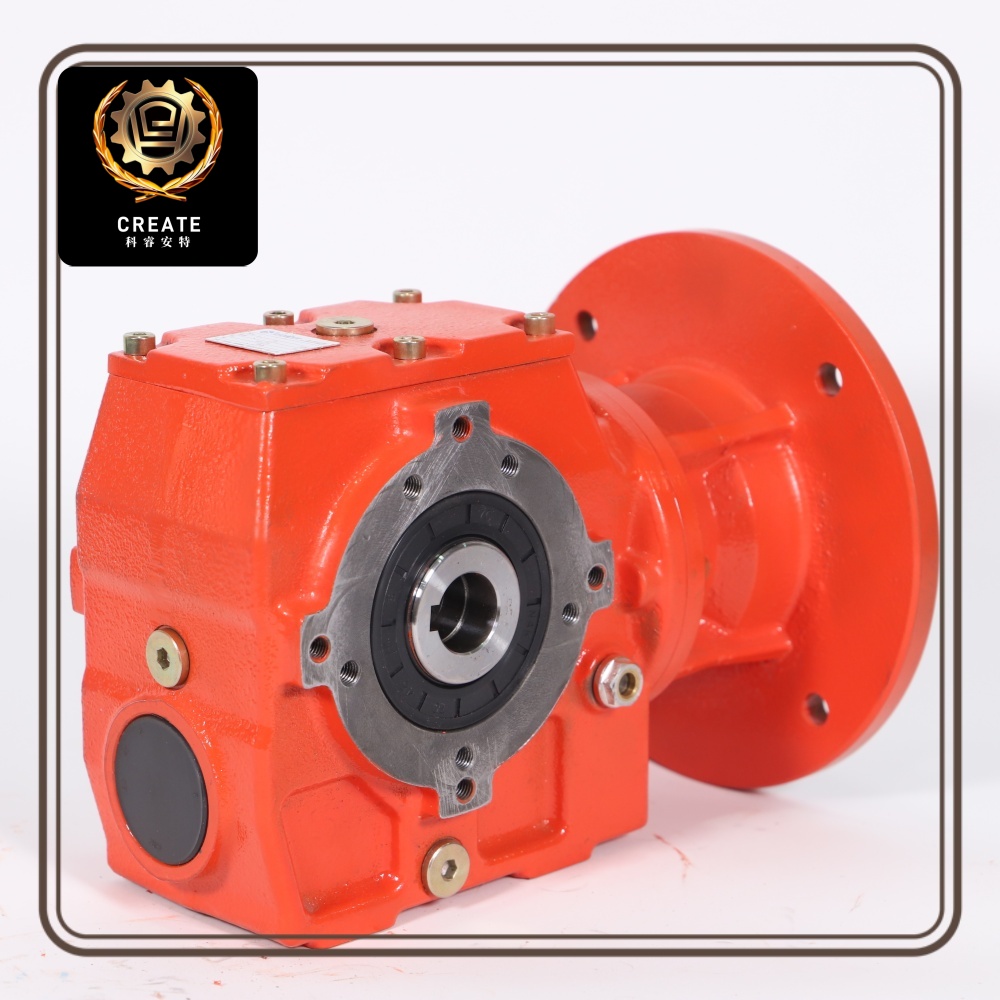

WS helical worm gear reducer Click for more details

WS helical worm gear reducer

Features
1.Strong cast iron housing.
2.Wide range of sizes.
3.High carrying ability.
4.High efficiency.
5.Univeral mounting.
Benefits
1.Unique housing design.
2.Long service life.
3.Low temperature rise.
4.Unique housing design.

Technical features:

Size	WS 37- WS 97
Ratio	6.8-288
Power	0.12- 30KW

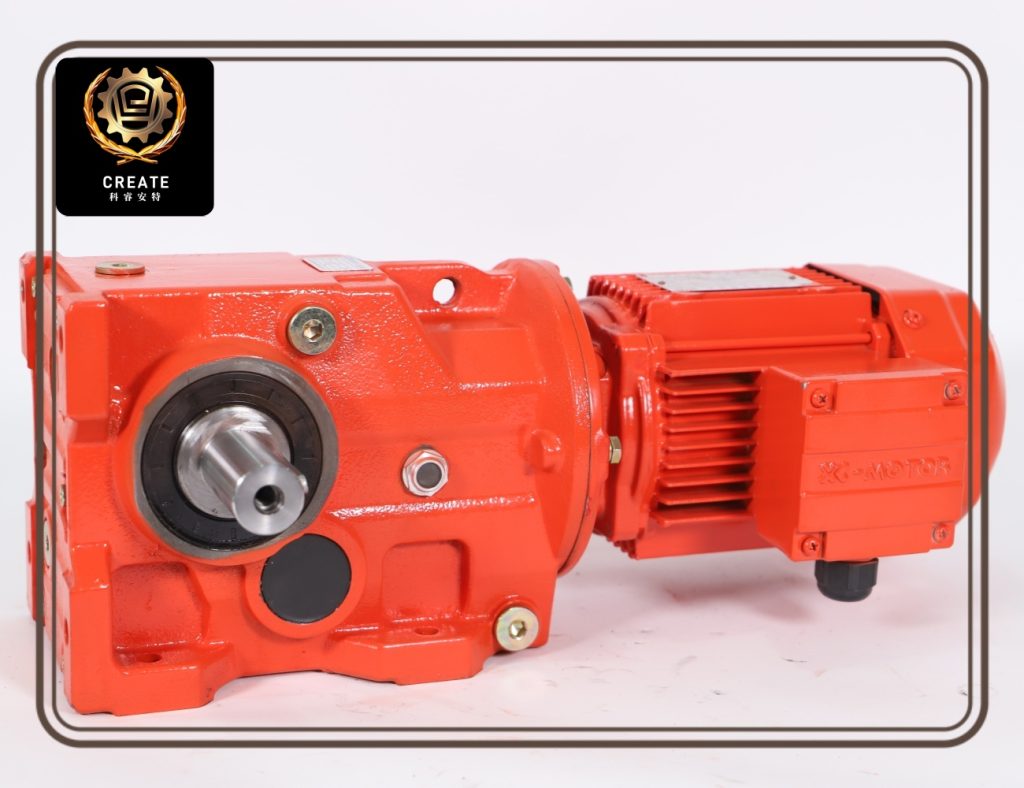

WK Series worm gears reducer Click for more details

WK Series worm gears reducer

Categories:   Worm Gear Reducer Model:      WK Series

Strict production
Precision measurement for housing and parts
Semi-automatic assembly line
100% running test
100% Air tightness test

MITSUBUSHI Hobbing machine

LG-MAZAK vertical machining center

DMG Mori vertical/horizontal machining center.

Features
1.Strong cast iron housing.
2.Wide range of sizes.
3.High carrying ability.
4.High efficiency.
5.Univeral mounting.

Benefits
1.Unique housing design.
2.Long service life.
3.Low temperature rise.
4.Unique housing design.

Technical features:

Size	WS 37- WS 187
Ratio	5.36- 197.37
Power	0.12- 200KW

Planetary gearbox series

Size	from 65 to 235
Ratio range	from 3 to 100
Backlash	1 stage	≤3 arcmin
	2 stage	≤5 arcmin
Efficiency	94-97%
Noise(Max)	55-70 db
Service Life	20000h
Nominal input speed	2000-3000 rpm
Max.input speed	4000-6000 rpm

WPLF precision planetary gear reducer

Features & Benefits
1.Low backlash: 1-stage less than 8 arcmin, 2-stage less than 10 arcmin
2.Low Noise:Under 68dB
3.High reduction ratio:Modular design can make the ratio reach 1/1000.
4.Various input design allows reducers can be connected with all servo motor models

Size	from 65 to 160
Ratio range	from 3 to 1000
Backlash	1 stage	≤8 arcmin
	2 stage	≤10arcmin
	3 stage	≤12 arcmin
Efficiency	92-96%
Noise(Max)	55-68 db
Service Life	20000h
Nominal input speed	3000-4000 rpm
Max.input speed	4500-8000 rpm

WPLR right Angle planetary reducer

Features & Benefits 1.90 degree design makes the connections more diverse.
2.High input speed allows 6000 rpm.
3.High reduction ratio:Modular design can make the ratio reach 1/1000.
4.Various input design allows reducers can be connected with all servo motor models

Size	from 60 to 160
Ratio range	from 3 to 1000
Backlash	1 stage	≤12 arcmin
	2 stage	≤15 arcmin
	3 stage	≤18 arcmin
Efficiency	90-94%
Noise(Max)	55-68 db
Service Life	20000h
Nominal input speed	3000-4000 rpm
Max.input speed	4500-8000 rpm

WPLH hollow output planetary gearbox

Features & Benefits:
1.90 degree design makes the connections more diverse.
2.High input speed allows 6000 rpm.
3.High reduction ratio:Modular design can make the ratio reach 1/1000.
4.Various input design allows reducers can be connected with all servo motor models.

SIZE	from 70 to 160
Ratio range	from 3 to 1000
Backlash	1 stage	≤8 arcmin
	2 stage	≤10 arcmin
	3 stage	≤12 arcmin
Efficienfy	92-96%
Noise(MAX)	55-68 dB
Service Life	20000h
Nominal input speed	3000-3500 rpm
Max.input speed	4500-7000 rpm

MITSUBUSHI Hobbing machine
LG-MAZAK vertical machining center
DMG Mori vertical/horizontal machining center.

Features of Worm Reducer /Gearbox
1.Common mounting dimensions.
2.Aluminum and cast iron housing.
3.Worm and worm wheel transmission.
4.Compact structure and light-weight.
5.Wide range of accessories.
Benefits of Worm Gearbox / Reducer
1.Unique housing design will distinguish you from other competitors.
2.Multiple choice for oil seal.
3.The dimensions can be customized according to customer’s requirements.
